LeCouple KY sterile sampling system mainly include sampling kit, holder and sealing cap. The LeCouple KY sampling kit can be customized according to your specific requirements.
Widely used in stainless steel production technology of biological products in the production or storage process of aseptic sampling such as:

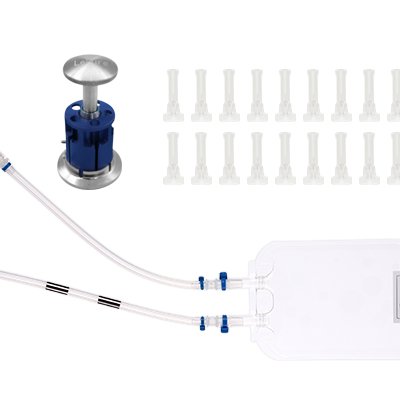

Composition of aseptic sampling system
LeCouple KY Sampling Kit
| Item | Parameter |
|---|---|
| Needle cap | Platinum vulcanized silicone rubber |
| Needle handle | PP |
| Needle | 316L stainless steel |
| Bag Body | LeKrius Film |
| Manifold | PE |
| Pipeline | TPE |
| Metal ring | Nickel-plated brass |
| Sterilization method | Gamma: 25-40 kGy |
| Temperature range | 50mL-250mL: -80℃-50℃ 1000mL: -20℃-50℃ |
| Operating conditions | Max operation pressure: 0.5bar |
| Self-life | 2 years |
LeCouple KY Holder
| Item | Parameter |
|---|---|
| Nut | 316L stainless steel |
| Base | 316L stainless steel |
| Handle | 316L stainless steel |
| Slide rail | Polymer materials |
| Surface roughness | Wetted parts electropolished Ra ≤0.5 μm |
| Operating conditions | Max operation pressure: 6 bar Max temperature: 150℃ |
Sealing Cap
| Item | Parameter |
|---|---|
| Cap | Platinum vulcanized silicone rubber |
| Washer (fits 2mm needle) | Stainless stee |
| Operating conditions | Max operation pressure: 6 bar Max temperature : 180℃ |
| Self-life | 5 years |
LeCouple KY Sampling Kit
| Part No | Volume（mL） | Description |
|---|---|---|
| HS0050-2K | 50 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS0100-2K | 100 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS0250-2K | 250 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS001-2K | 1000 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS0050-3K | 50 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS0100-3K | 100 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS0250-3K | 250 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
| HS001-3K | 1000 | Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug Tubing 1: 2/15 "-6/25"Le-Flex thermoplastic tube, 26cm, with metal disconnection ring, end 2mm Y-shaped sampling needle Tubing 2: 2/15"-6/25" Le-Flex thermoplastic tube, 26cm, end female Luer connector + male plug |
Sealing Cap & Holder
| Sealing Cap | ||
| Part No. | Fit the inner diameter of the needle（mm） | |
| MNDY1-2 | 1 | |
| MNDY2-2 | 2 | |
| Holder | ||
| Part No. | Fit the inner diamete（mm） | Size |
| HST51/5 | 1 | 5 holes TC50.5 holder |
| HST52/5 | 2 | 5 holes TC50.5 holder |
