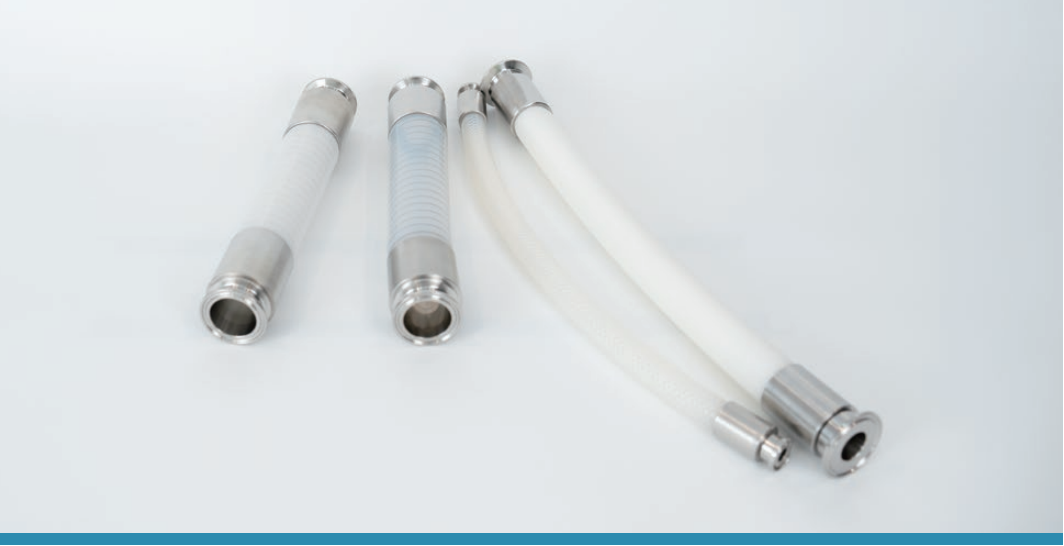

Pharmaceutical-Grade Pressure-Resistant Silicone Tubing & Crimped Tubing

Customized solutions for high-pressure fluid transmission

In biopharmaceutical manufacturing, fluid transfer occurs under harsh conditions such as high pressure, high flow rates, vacuum, and repeated CIP/SIP cycles—demanding piping with exceptional pressure resistance and longer service life.
LePure Biotech’s pharmaceutical-grade pressure-resistant silicone hose series delivers outstanding pressure resistance, flexibility, and resistance to aging. Constructed as a composite of high-purity medical-grade silicone and a high-strength reinforcement layer, it is manufactured via precision extrusion with enhanced process. Custom integrated crimped assemblies are available in a full range of sizes, ideal for high-pressure fluid transfer and long-term circulation applications.
The entire series complies with GMP, USP Class VI, and ISO 10993 biosafety standards, delivering safe, stable, and traceable quality assurance for high-pressure fluid transfer in biopharmaceutical process.

Request A Quote

Description

Feature

  • Specification: Inner diameter 6.4-102 mm
  • Working pressure up to 22 bar
  • Excellent biocompatibility
  • Wide temperature tolerance: -60 °C to 200 °C

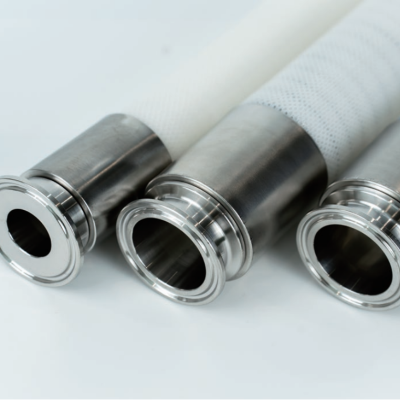

  • Integrated crimped assembly with precision workmanship, minimizing leakage risk
  • Full batch traceability



Application

Biopharmaceutical high-pressure process fluid transfer (buffers, culture media, bulk solutions)

  • High-pressure feed/recirculation for bioreactors and fermenters
  • Chromatography system, liquid preparation system high-pressure delivery and cross-device connection
  • Vacuum delivery, high temperature sterilization (SIP), and long-term cycle CIP conditions
  • Production scale-up and process high-pressure fluid transfer



Advantage

  • Superior High-Pressure Stability: Constructed with a composite reinforcement layer, delivering high pressure resistance, burst resistance, and kink resistance for long-term stable operation under high-pressure conditions
  • Integrated crimped design, supporting standard and custom configurations
  • Withstands repeated SIP/CIP cycles; resists aging and hardening
  • End-to-End Quality Assurance: Manufactured in cleanrooms with precision process and rigorous testing, ensuring high batch consistency and long service life



Compliance with regulations

  • ISO 10993-5 Cytotoxicity testing
  • USP<87> In vitro bioreaction tests
  • USP<88> Class VI in vivo biosafety
  • FDA 21CFR 177.2600 food-contact silicone elastomer

Product Range

Product Range

Technical ParametersMesh braided silicone hoseTransparent steel wire silicone hoseSteel wire reinforced silicone hose
Reinforcing layer structurePolyester fiber braidSingle-layer stainless steel wire windingHigh-strength synthetic fiber + stainless steel wire
Vacuum ratingNot applicable-0.4 bar-0.91 bar
Appearance transparencyTranslucentHigh transparencyGeneral



Ordering Information

Ordering Information

Mesh braided silicone hose -BT62 series

Product codeInner diameter (mm)×outer diameter (mm)Working pressure(bar)Bending radius(mm)Packaging
BT620066.4 × 13.21745.015 m/ roll; Double-layer packaging
BT620087.9 x 151555.015 m/ roll; Double-layer packaging
BT620099.6 × 16.61470.015 m/ roll; Double-layer packaging
BT6201312.7 × 22.21185.015 m/ roll; Double-layer packaging
BT6201615.9 × 25.01095.015 m/ roll; Double-layer packaging
BT6201919.1 × 31.07135.015 m/ roll; Double-layer packaging
BT6202525.4 × 37.07160.015 m/ roll; Double-layer packaging
BT6203231.8 × 43.86200.015 m/ roll; Double-layer packaging
BT6203838.0 × 50.05300.015 m/ roll; Double-layer packaging

Transparent steel wire silicone hose -ST63 series

Product codeInner diameter (mm)×outer diameter (mm)Working pressure(bar)Bending radius(mm)Packaging
ST6301919.1 × 30.14.290.06 m/ roll; Double-layer packaging
ST6302525.4 × 36.43.9121.06 m/ roll; Double-layer packaging
ST6303231.8 × 42.83.4137.06 m/ roll; Double-layer packaging
ST6303838.1 × 49.13.1163.06 m/ roll; Double-layer packaging
ST6305150.8 × 61.82.4238.06 m/ roll; Double-layer packaging
ST6306363.5 × 76.02.2337.06 m/ roll; Double-layer packaging
ST6307676.2 × 88.01.8491.06 m/ roll; Double-layer packaging
ST6308988.9 × 101.01.6626.06 m/ roll; Double-layer packaging
ST63102101.6 × 114.01.0985.06 m/ roll; Double-layer packaging

Steel wire reinforced silicone hose -GS65 series

Product codeInner diameter (mm)×outer diameter (mm)Working pressure(bar)Bending radius(mm)Packaging
GS650099.6 × 21.022.033.06 m/ roll; Double-layer packaging
GS6501312.7 × 23.719.938.06 m/ roll; Double-layer packaging
GS6501615.9 × 26.918.344.06 m/ roll; Double-layer packaging
GS6501919.1 × 30.116.550.06 m/ roll; Double-layer packaging
GS6502525.4 × 36.414.166.06 m/ roll; Double-layer packaging
GS6503231.8 × 42.812.892.06 m/ roll; Double-layer packaging
GS6503238.1 × 49.111.5110.06 m/ roll; Double-layer packaging
GS6505150.8 × 61.89.2140.06 m/ roll; Double-layer packaging
GS6506363.5 × 76.07.5178.06 m/ roll; Double-layer packaging
GS6507676.2 × 88.06.1226.06 m/ roll; Double-layer packaging
GS65102102.0 × 114.03.8360.06 m/ roll; Double-layer packaging

Custom pressure-resistant crimping tube numbering principles

Non-crimped hose series codeCorresponding to the crimped hose series number
BT62BH62
ST63SH63
GS65GH65
