High-Flow Intelligent Dispensing Peristaltic Pump

The SF601C is a high-flow intelligent dispensing peristaltic pump equipped with a 3.5-inch color LCD touch screen for simple and intuitive operation. It features two operating modes: transfer and dispensing, enabling intelligent configuration to meet diverse application requirements. Driven by a high-torque motor, it supports data storage and multiple remote control protocols including RS485 MODBUS.

Request A Quote

Description

Feature

  • LCD Touch Control: 3.5-inch color LCD with Chinese and English display, operated via touch screen
  • Data Storage: Capable of storing 8 sets of user-defined data
  • Power-off Memory Function: Resumes operation in the state before power failure after power is restored
  • Flow Calibration: Equipped with flow calibration function for high-precision liquid transfer
  • Multiple Operating Modes: Two modes including transfer and dispensing, supporting repeated timed and quantitative filling
  • External Control Support: Compatible with RS485 MODBUS communication protocol, analog quantity control and foot switch control



Application

Applied to high-flow liquid transfer in biopharmaceutical processes

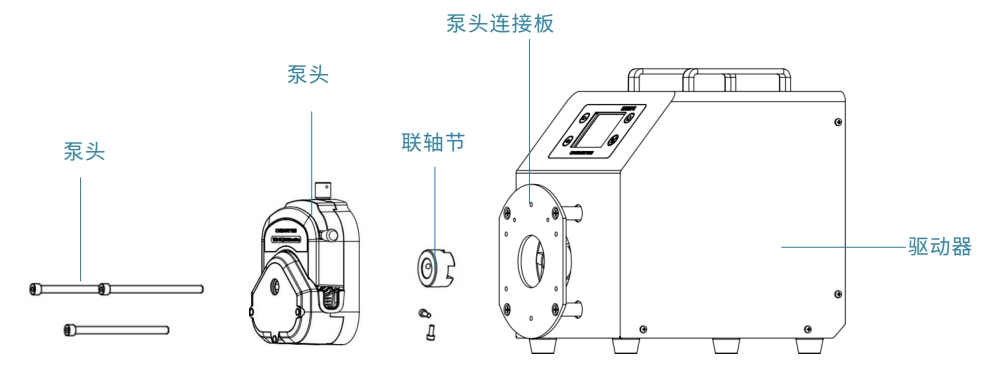

Structural-functional diagram

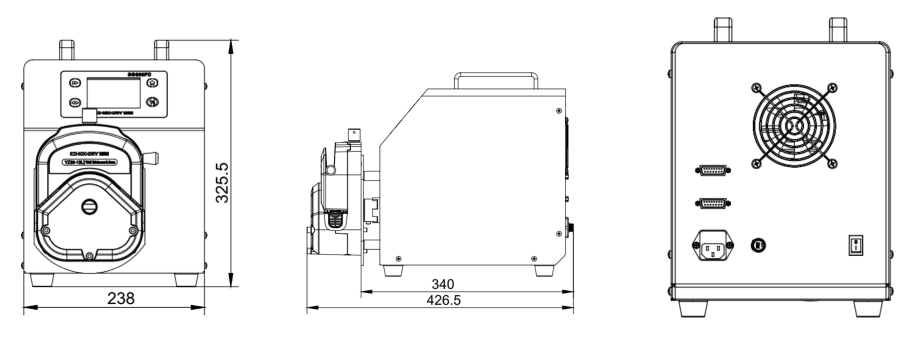

Dimension schematic diagram

(Unit: mm)

Note: Technical parameters are subject to change without prior notice.

Technical Parameters

Technical Parameters

Driver ModelSF601C
Speed Range0.1–600 rpm (reversible)
Flow Rate Range0.0013–12 L/min
Speed Resolution0.1 rpm
Speed Regulation ModeTouch screen adjustment
Display ModeColor LCD display (Chinese/English selectable)
Backlash Angle10°–720° (0° means no back suction)
Back Suction Speed10–300 rpm
Power SupplyAC220±10% (standard) or AC110V±10% (optional)
Power＜400 W
External Control InterfaceDB-15
External Control FunctionsStart control / direction control / speed control (0–5 V, 0–10 V, 4–20 mA optional), RS485 serial communication
Ambient Temperature0–40 ℃
Driver Dimensions233*325*342.5 mm
ngress Protection RatingIP31

Pump Head / Tubing Flow Parameter Table

Pump Head ModelLP351BLP351B
Tubing Size73#82#
Inner Diameter (mm)9.612.7
Wall Thickness (mm)3.33.3
Flow Range (mL/min)1.3-74002-12000
Speed Range (rpm)0.1-6000.1-600
