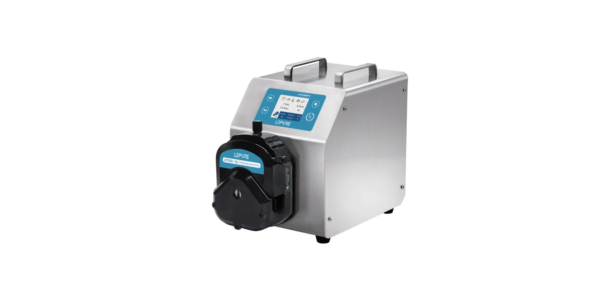

Medium-Flow Intelligent Dispensing Peristaltic Pump

The BF601C series is a medium-flow intelligent dispensing peristaltic pump equipped with a 3.5-inch touch screen for intuitive data display and various function settings. It features two operating modes: transfer and dispensing, enabling repeated timed and quantitative dispensing. Constructed with stainless steel for sturdiness and durability, it can store 8 sets of filling data to facilitate rapid filling. It supports multiple external control methods including the RS485 MODBUS communication protocol.

Request A Quote

Description

Feature

  • LCD Touch Control: 3.5-inch color LCD with Chinese and English display, operated via touch screen
  • Data Storage: Capable of storing 8 sets of data for users
  • 304 Stainless Steel: Housing made of 304 stainless steel, sturdy, durable and corrosion-resistant
  • Flow Calibration: Equipped with flow calibration function for higher-precision liquid transfer
  • Multiple Operating Modes: Two modes including transfer and dispensing, supporting repeated timed and quantitative filling
  • External Control Supported: Compatible with RS485 MODBUS communication protocol, analog quantity control and foot switch control



Application

Used for liquid transportation in biopharmaceutical processes, as well as supplementation of buffer solutions and culture media for fermenters.

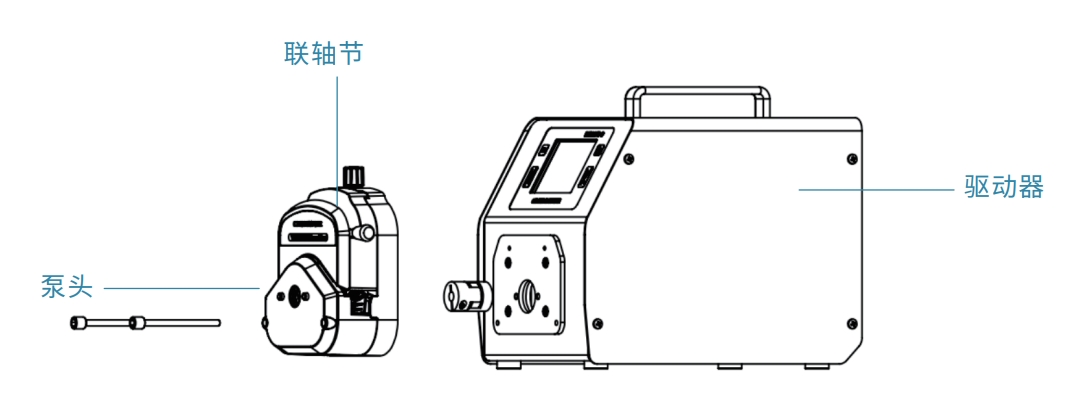

Structural-functional diagram

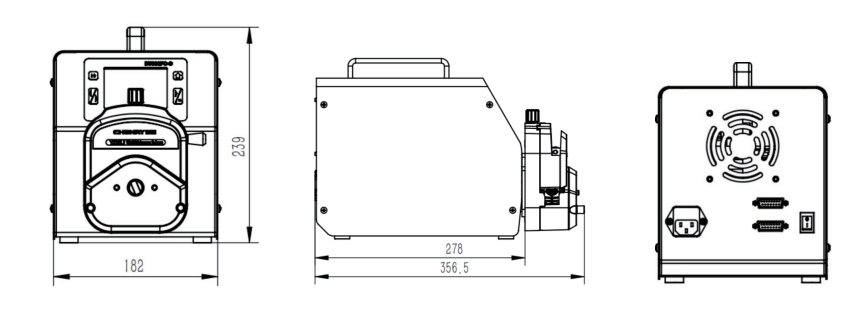

Dimension schematic diagram

(Unit: mm)

Note: Technical parameters are subject to change without prior notice.

Technical Parameters

Technical Parameters

Driver ModelWS601E
Speed Range0.1–600 rpm
Speed RegulationBidirectional, resolution 0.1 rpm
Weight5.9 kg (including pump head)
Display Mode2.42-inch OLED LCD with key operation
Overall Dimension150*155*306 mm (WHD)
Applicable Power Supply115–230 VAC (50/60 Hz)
Driving ModeBrushless motor drive
Operating EnvironmentTemperature 0–40 ℃, relative humidity ＜ 80%
Ingress Protection RatingIP55
Power-off MemoryThe device resumes operation in the state prior to power outage after re-powering
Adjustment ModeButton adjustment
MaterialSPCC (spray coated)
Speed Range0.1–600 rpm

Pump Head / Tubing Flow Parameter Table

Pump Head ModelLP251A
MaterialHousing: 6061 aluminum (sandblasted and anodized); Rollers: 304 stainless steel
Applicable TubingSize 15#, 24#, 35#, 36#
Flow Range0.3–6600 mL/min
Number of Rollers3
Tubing Channel1 (single pump head)
Tubing Clamping ModeAdaptive tube clamp
